Programmable Series

BDL5490C-7-S

Programmable Top Differential Feed Sewing Machine for Curved Bottom Hemming

Product Parameters

Product Application
Product advantages
Application Video

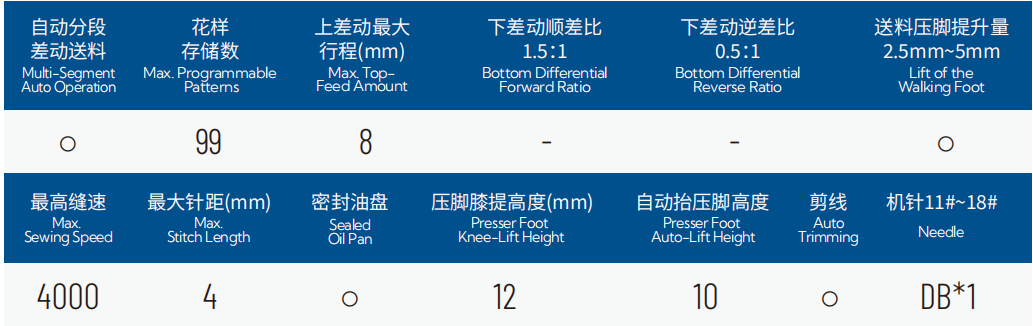

Technical Specifications

Priority Application:

Shirt Rounded Hems / (Fashion & Women's Wear) Curved Hems / Circular Hems Chiffon Rolled Hems / Home Textile Sheet Rounded Hem

1. Proprietary Multi-Segment Gather Control:Prevents twisting and puckering on curved hems across diverse fabrics.

2. Program with 5/9/11 Segments Options:Adjustable differential and stitch count (max 999 stitches) per segment.

3. Auto/Manual Mode Switching:Left-knee lever quickly passes seams for efficient mixed-size production.

4. Intuitive Panel Interface:Set segment-specific differentials and stitch counts with direct editing and storage.

5. 99 Pattern Storage & Recall:Bilingual UI + voice prompts for multilingual environments.

6. Early Walking Foot Lift:Prevents fabric snagging during placement and start-up.

7.Oilless Needle Bar Areas & Sealed Oil Pan:Prevents fabric stains with fully enclosed lubrication.

8.Patented Anti-Jam System:Blocks lint and debris for consistent stitching.
